Gigabyte

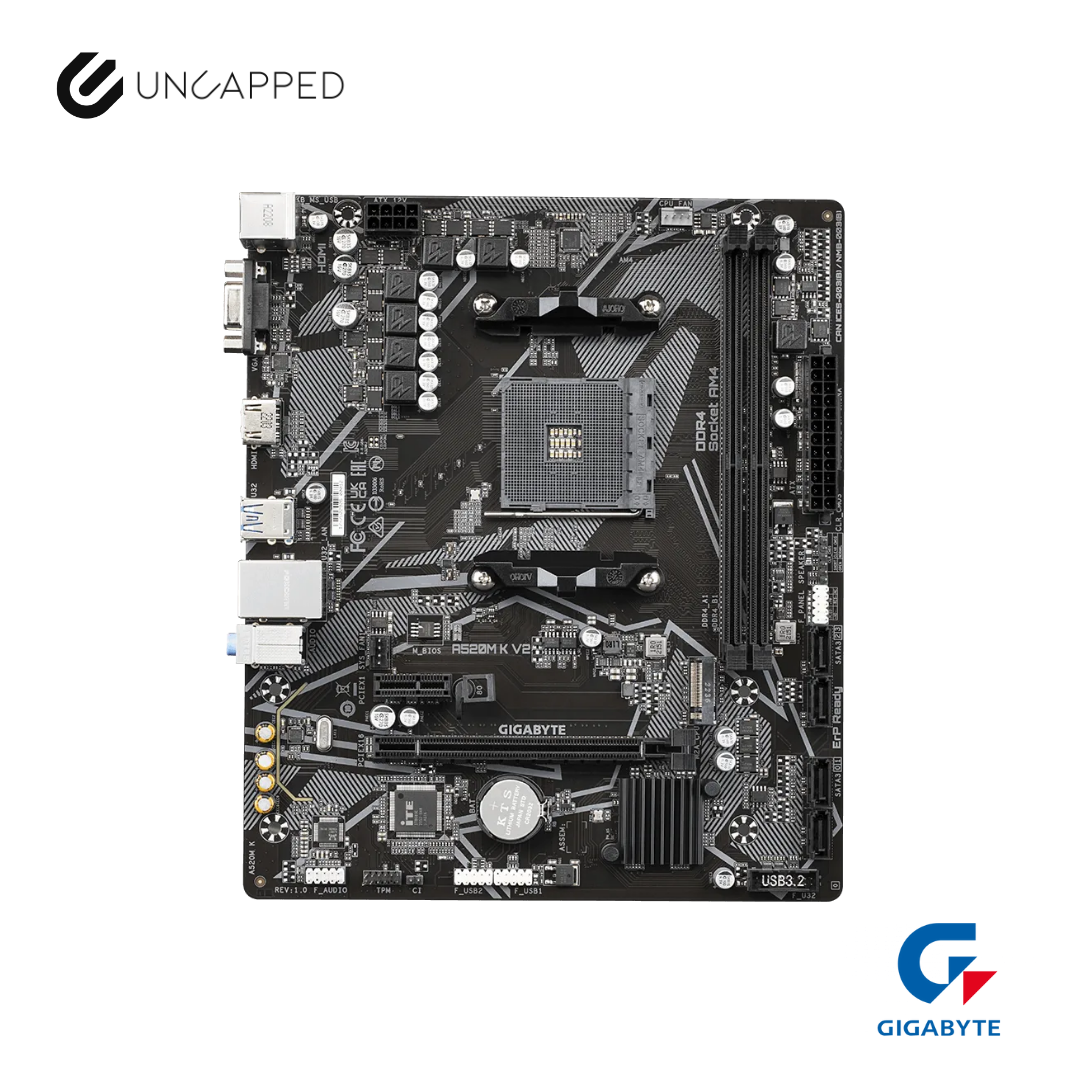

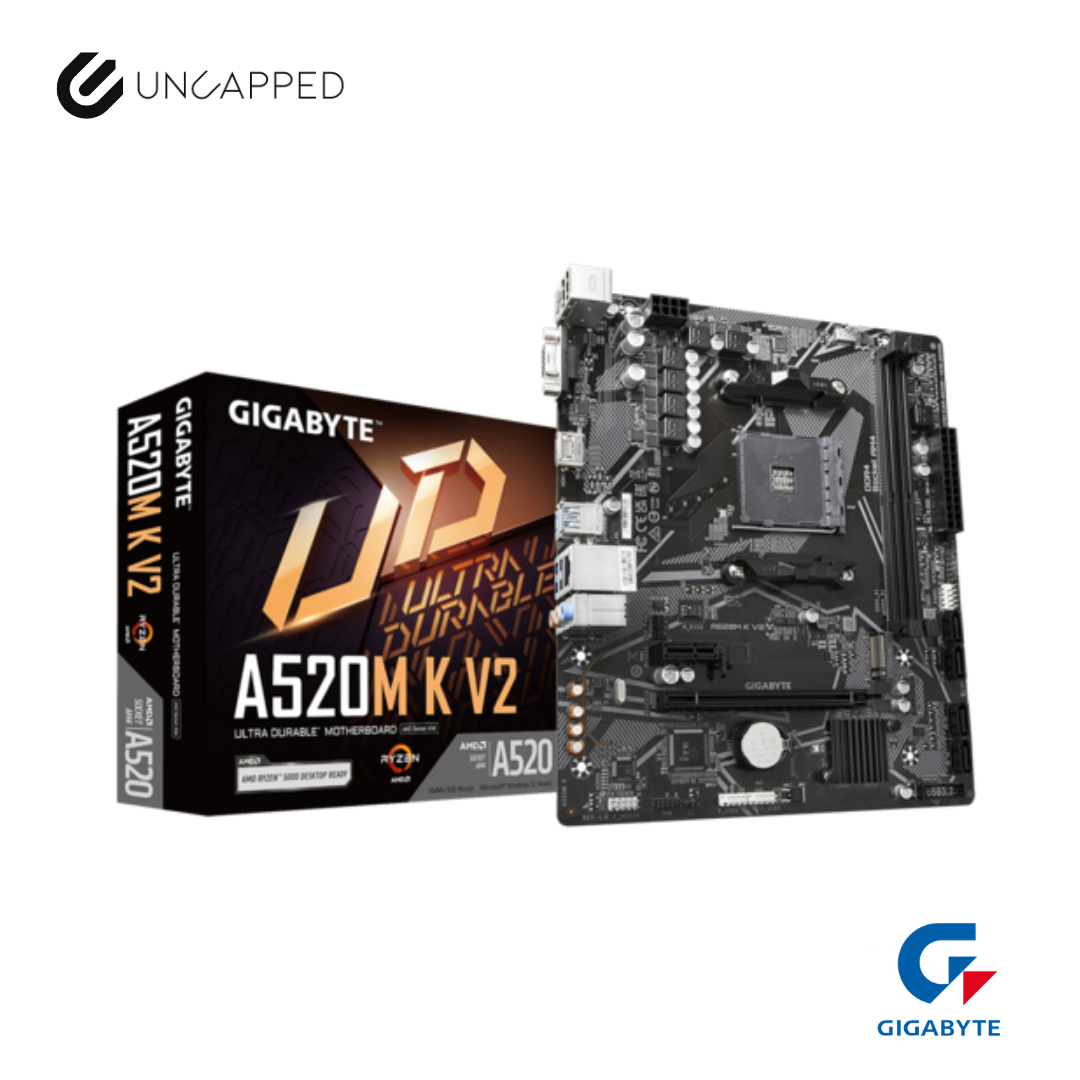

Gigabyte A520M K V2
Gigabyte A520M K V2
Regular price
₱3,400.00 PHP
Regular price
Sale price
₱3,400.00 PHP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
A budget-friendly motherboard designed for everyday computing, offering reliable performance and smooth compatibility with Ryzen CPUs. Ideal for entry-level builds or basic productivity setups, it provides great value without unnecessary frills
Brand: Gigabyte
Socket: AM4
RAM: 2
PCI-E: 1
M.2 Slots: 1
Ryzen 5000 desktop ready
| Category | Details |
|---|---|
| CPU | AMD Socket AM4, support for: - AMD Ryzen™ 5000 G-Series Processors - AMD Ryzen™ 5000 Series Processors - AMD Ryzen™ 4000 G-Series Processors - AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors (Refer to "CPU Support List" for more information.) |
| Chipset | AMD A520 |
| Memory | - 2 x DDR4 DIMM sockets, up to 64 GB (32 GB per DIMM) - Supports DDR4 5100(O.C.) to 2133 MHz memory modules - Dual-channel memory architecture - ECC and non-ECC Un-buffered DIMMs supported - Supports XMP memory modules (Refer to "Memory Support List" for more information.) |
| Onboard Graphics | - Integrated Graphics Processor - 1 x D-Sub (1920x1200@60 Hz) - 1 x HDMI 2.1 (4096x2160@60 Hz, HDCP 2.3, HDR) - Max shared memory: 16 GB |
| Audio | - Realtek® Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel audio (7.1-channel configurable via software) |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | CPU: - 1 x PCI Express x16 (PCIe 3.0, running at x16) Chipset: - 1 x PCI Express x1 (PCIe 3.0, running at x1) |
| Storage Interface | CPU: - 1 x M.2 (Socket 3, M key, SATA & PCIe 3.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors - RAID 0, RAID 1, RAID 10 support |
| USB | CPU: - 4 x USB 3.2 Gen 1 (back panel) Chipset: - 2 x USB 3.2 Gen 1 (internal) - 6 x USB 2.0/1.1 (2 back panel, 4 internal) |
| Internal I/O | - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 1 x system fan header - 1 x M.2 connector - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module (TPM) header - 1 x speaker header - 1 x Clear CMOS jumper - 1 x chassis intrusion header |

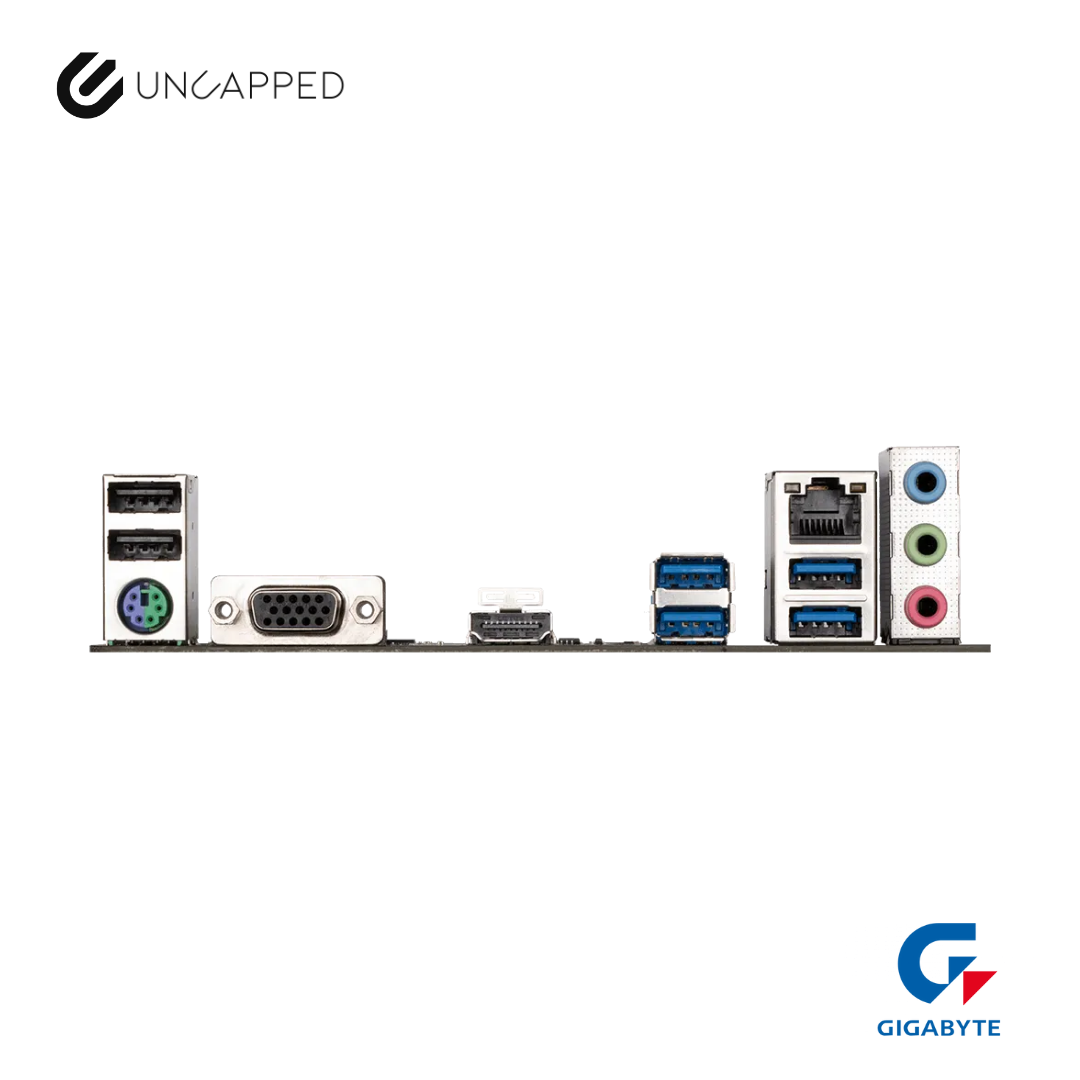

| Back Panel I/O | - 1 x PS/2 keyboard/mouse port - 1 x D-Sub port - 1 x HDMI port - 4 x USB 3.2 Gen 1 ports - 2 x USB 2.0/1.1 ports - 1 x RJ-45 port - 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | - Voltage, Temperature, and Fan speed detection - Fan fail warning - Fan speed control (depends on the cooler) |
| BIOS | - 1 x 128 Mbit flash - AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | - Support for APP Center (varies by model) - @BIOS, EasyTune, Smart Backup, System Information Viewer - Q-Flash, Xpress Install |
| Bundled Software | - Norton® Internet Security (OEM) - LAN bandwidth management software |
| Operating System | - Windows 11 64-bit - Windows 10 64-bit |
| Form Factor | Micro ATX, 23.3 cm x 19.8 cm |
